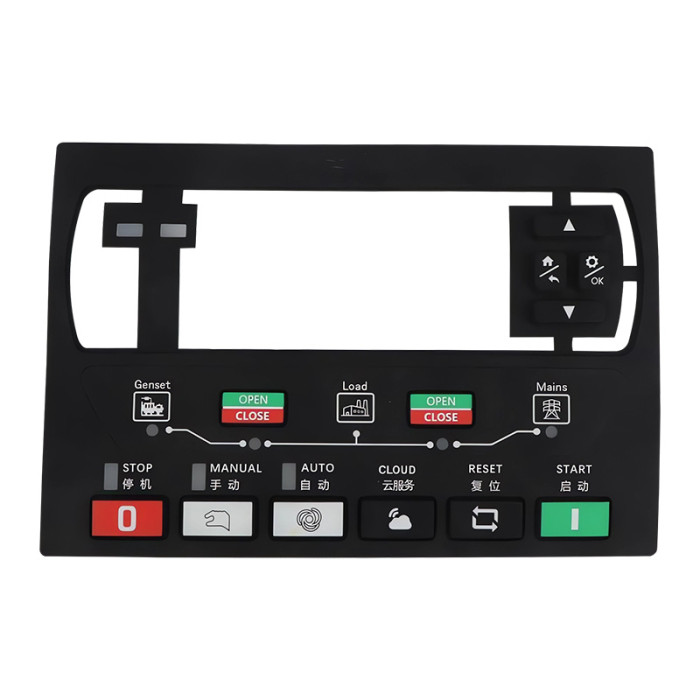

Custom Silicone Rubber Keypad | PushButton Supplier
Custom Silicone Rubber Keypad | PushButton Supplier
| Categories | Control Panel |
|---|---|
| Brand | FromRubber Silicone & Plastic OEM Manufacturer |
| Design | Follow 3D Drawing Or Physical Object |
| Printing | Silk Screen Printing,Laser Etching |
| Feature | Backlight,Clear Character |
| MOQ | 1000pcs |
| Prototype Mold Leadtime | 3 days |
| Production Mold Leadtime | 12 days |
| Production Leadtime | 3 days |
| Technical Support | Available |
| Drawing optimization | Available |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Update Time | Nov 23,2024 |
Detail Information
Custom Silicone Rubber Keypad | PushB utton Supplier
1.Product Process Introduction
The product process of the silicone keypad
1. Raw material Mix: Click to learn more
The silicone raw material is a transparent color, and when black color paste is added, it mixes to become black.2. Silicone Molding: Click to learn more
The designed appearance is obtained by fixing the shape of the raw material in the mold, at which point the product is all black.
3. Printing Logo:Click to learn more
The patterns on the surface of the silicone are printed on by ink. The color of the ink is adjustable.
4. Spraying Protect Process:Click to learn more
After printing, a layer of protective oil is usually sprayed on the surface of the product to make the logo more durable.
5. Backing Adhesive Process:Click to learn more
Paste 3M adhesive paper on the back of the product with the size of the customized product all the time, note that 3M adhesive paper also needs to be customized in advance to achieve the best results.
2.Application of Silicone Keypad
●Medical industry
●Instrumentation
●Digital product
●military industry
●....
3.Advantage of Silicone Rubber
Durability
●Wear Resistance:
Excellent wear resistance for long-lasting use.
●Weather Resistance:
Resists UV, ozone, and temperature extremes, preventing aging.
Comfortable Feel
●Soft and Elastic:
Provides a comfortable tactile feel with good elasticity.
●Quiet Operation:
Low noise during use, ideal for quiet environments.
Sealing and Protection
●Waterproof and Dustproof:
Naturally resistant to water and dust, suitable for harsh environments.●Chemical Resistance:
Resistant to oils, acids, and alkalis, ideal for chemical or lab use.Design Flexibility
●Customizable:
Easily tailored in color, shape, size, and texture to meet specific needs.
●Backlighting:
Can be designed for backlighting, making them visible in low-light conditions.
Silicone rubber keypads are widely used due to their durability, flexibility, and cost-effectiveness across various industries.
4. Considerations for Customizing Silicone Rubber Keypads
Silicone Keypad Structure Design
●The Base thickness can be taken 0.8 ~ 1.2mm, too thick substrate will increase shrinkage, affecting the dimensional accuracy.
●For conductive rubber, the stroke generally take 0.8 ~ 1.5mm is appropriate
SIlicone Keypad Elastic Arms Design
Different press force according to different key sizes.In terms of area.
● 40~95mm² : 80g±15%
● 95~175mm² : 100g±15%
● 175~350mm²: 130g±15%
● 350~630mm²: 170g±15%
● 630~950mm²: 210g±15%
common form of Elastic Arms
●Cone Style
Suitable for products with good tactile and high elasticity
●Dome Style
Suitable for products with long stroke and low elasticity
●Flat Style
Suitable for products that do not require elasticity, commonly used in light touch switches.
●Double Web Style
Suitable for keys with very long travel
